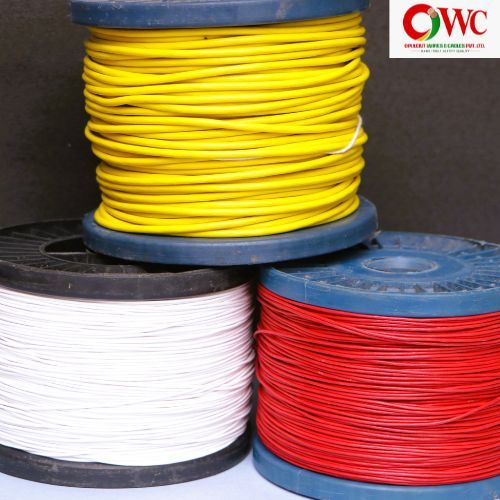

PTFE Hook Up Wires


PTFE Hook Up Wires

The company has come up as a highly efficient Manufacturer and Supplier of PTFE Hook Up Wires in India. The company offers a premium quality range of the PTFE Hook Up Wires to the clients all over the country. The PTFE Hook Up Wires are available in their standard as well as customized forms and can be availed at the market leading prices.

Range (Standard products meet the MIL-W-16878 Standard)

  • Type ET, 250 volts
  • Type E, 600 volts
  • Type EE, 1000 volts


Features

  • Operating temperature range of -65 to 260oC
  • Ideal for complex, high density wiring packages
  • Excellent mechanical and electrical properties
  • Small size and light weight
  • Propagates neither flame nor fire
  • Resistance to solder iron damage
  • Withstands most solvents
  • Range of standard and custom designed



Specifications

  • Conductor : SPC/NPC/Bare Copper or as per customer requirements.
  • Insulation : PTFE
  • Properties : Resistance to fire, chemicals, acids, sunlight, moisture and corona.
  • Voltage grade : 250V/ 600V/ 1000V or as per customer requirements.
  • Temperature : -65oC to + 260o C

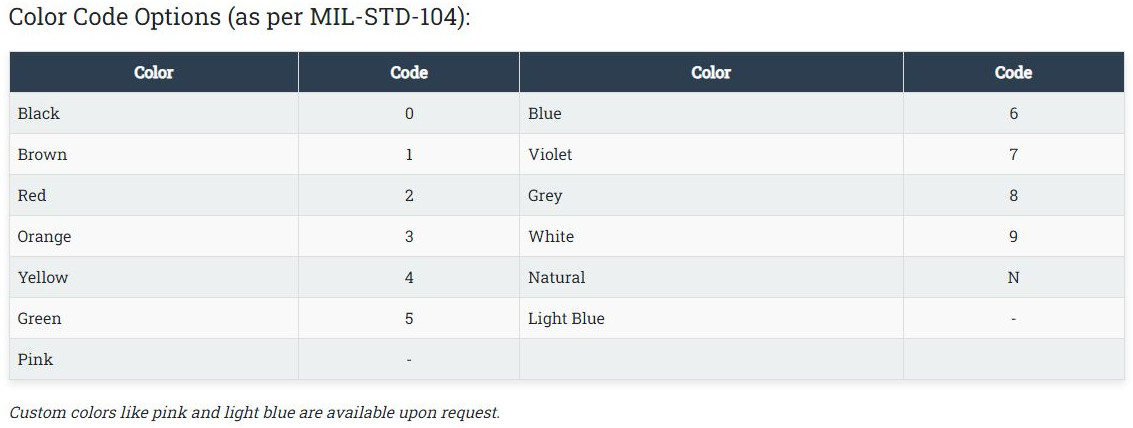

  • Colour : All Electronic Colours, Bi-Colours & Tri-Colours.
  • Size : As per Standards or customer specific requirements.


Single Strand PTFE Insulated Hook-Up Wires (Unscreened)


Single Strand PTFE Insulated Hook-Up Wires (Unscreened)

Multistrand PTFE Single Core Cables (Unscreened)


Multistrand PTFE Single Core Cables (Unscreened)
